Rotary Electrical Connectors
One Conductor, 10 AMP

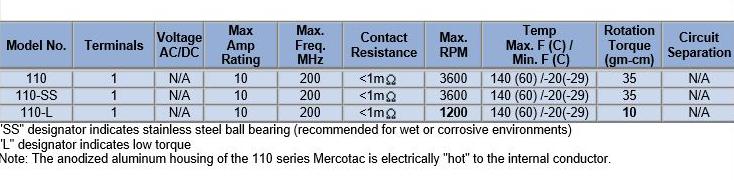

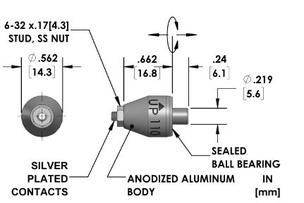

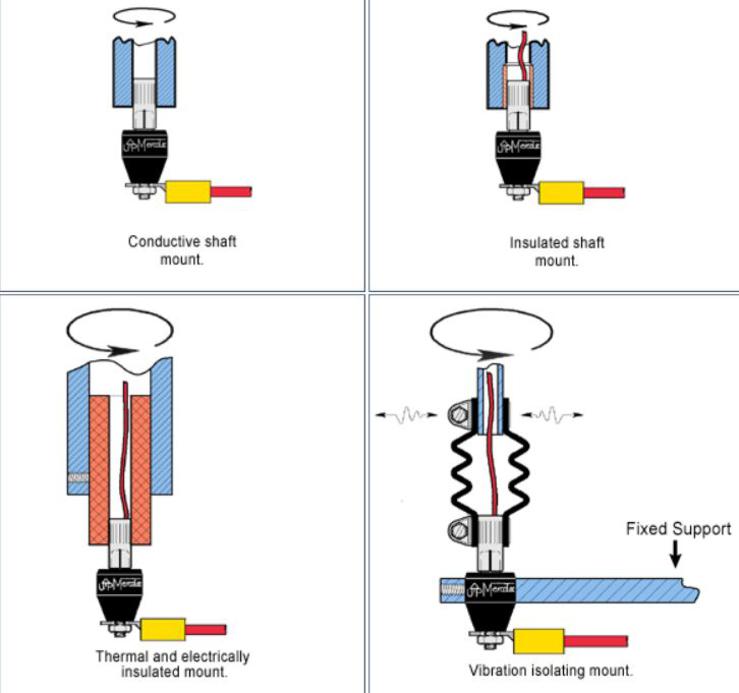

Mounts at the end of a rotating axis.

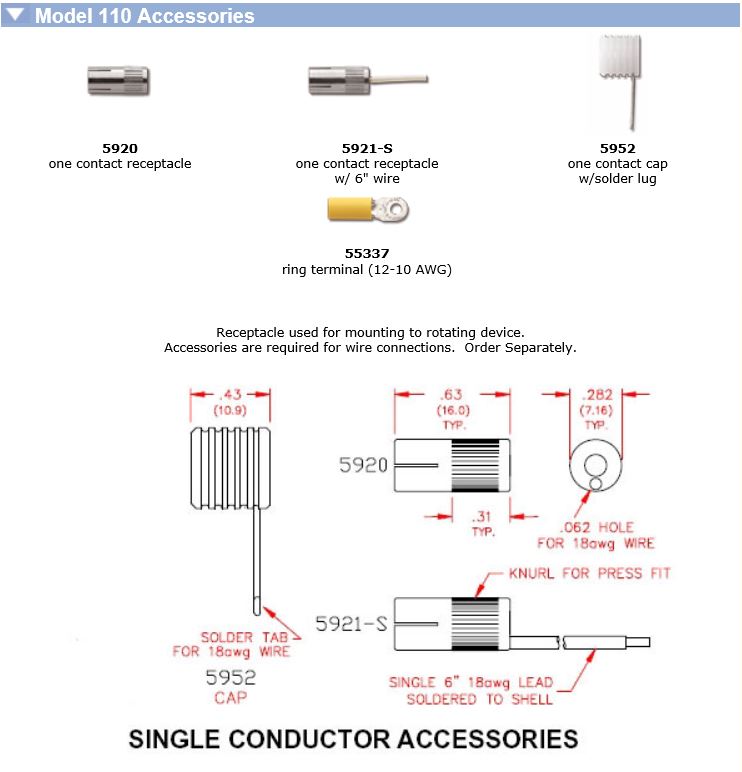

Mount by the press fit receptacle accessory.

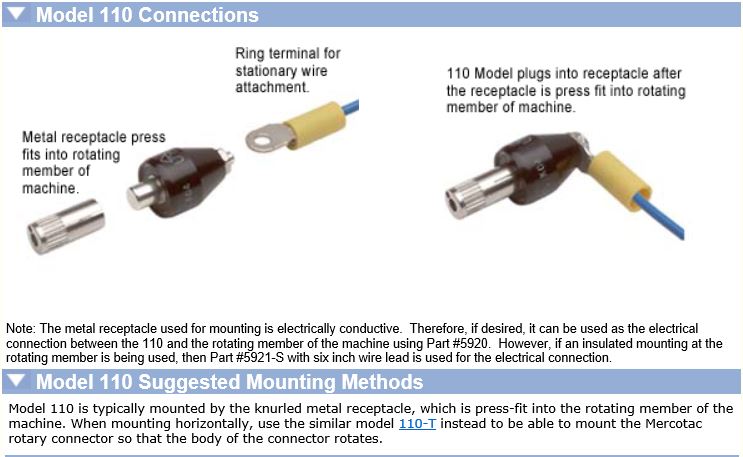

Wire attaches using the accessory receptacle or cap.

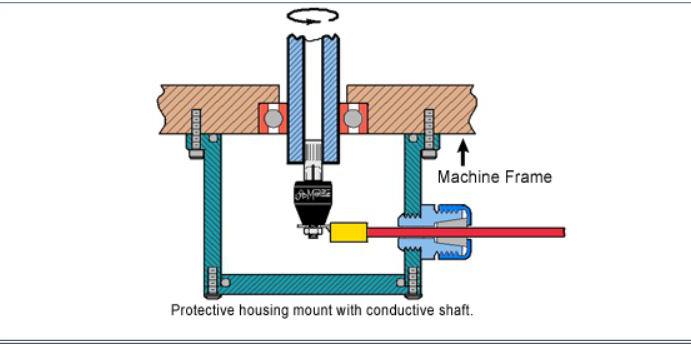

This model is designed to mount at the bottom of a vertical rotating shaft.
•the up arrow should not point below horizontal
•do not solder to or bend connector tabs
•avoid lateral forces and mechanical loads (overly stiff or tight wires)
•do not rigid mount both ends of connector
•limit mounting eccentricity (runout / wobble) to .005" (.13mm)
•provide overload protection within the circuit
•avoid vibration and bumping motions
