Rotary Electrical Connectors
Model 1500&1500-1
One Conductor, 500 AMP
.Installation Notes:

 •the up arrow should not point below horizontal
•do not solder to or bend connector tabs
•avoid lateral forces and mechanical loads (overly stiff or tight wires)
•do not rigid mount both ends of connector
•limit mounting eccentricity (runout / wobble) to .005" (.13mm)
•provide overload protection within the circuit
•avoid vibration and bumping motions

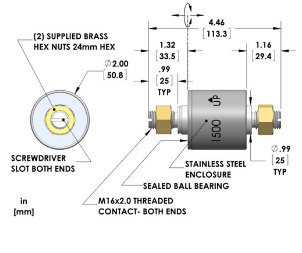

Model 1500

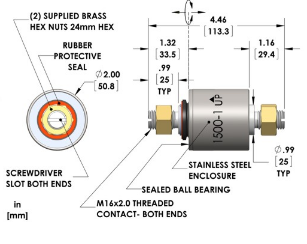

Model 1500-1

W​ith Dust Seal
