Rotary Electrical Connectors

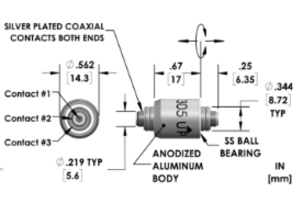

Model 305
Three Conductor, 4 AMPS
Stainless steel ball bearing standard

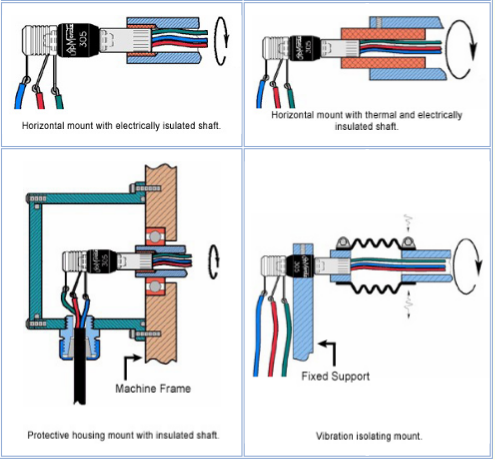

.Installation Notes:

 •the up arrow should not point below horizontal
•do not solder to or bend connector tabs
•avoid lateral forces and mechanical loads (overly stiff or tight wires)
•do not rigid mount both ends of connector
•limit mounting eccentricity (runout / wobble) to .005" (.13mm)
•provide overload protection within the circuit
•avoid vibration and bumping motions
