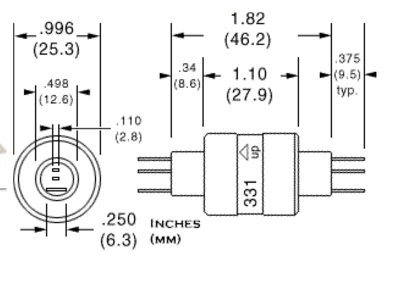

Rotary Electrical Connectors
Model 331

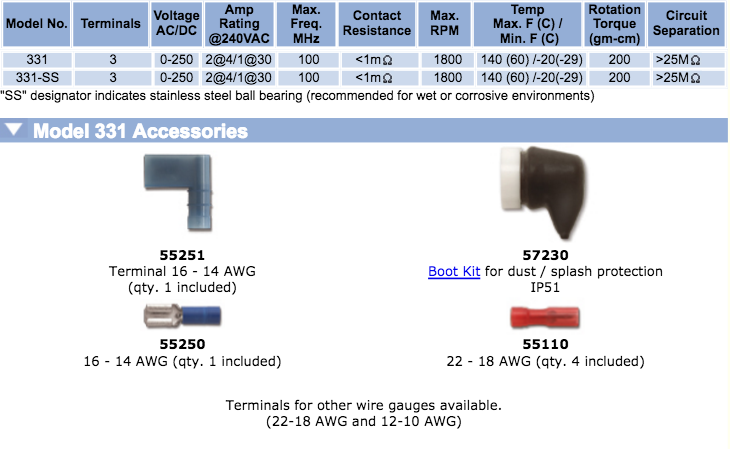

Three Conductors,
2@4amps, 1@30amp

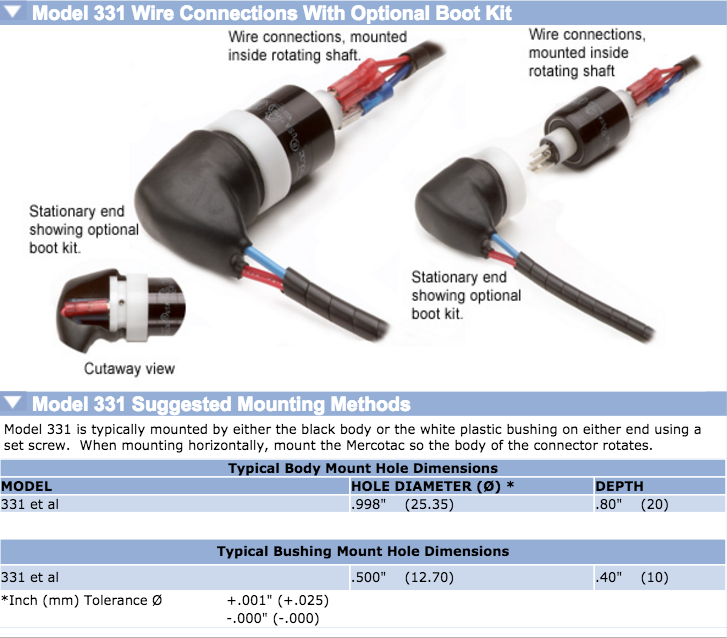

Disconnects included
(4 sm., 2 lg.)
Boot Kit available
Available with stainless steel ball bearing (331-SS)

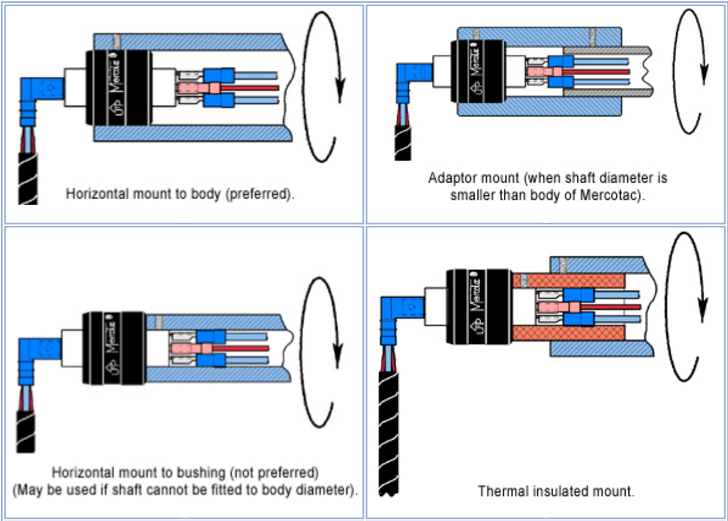

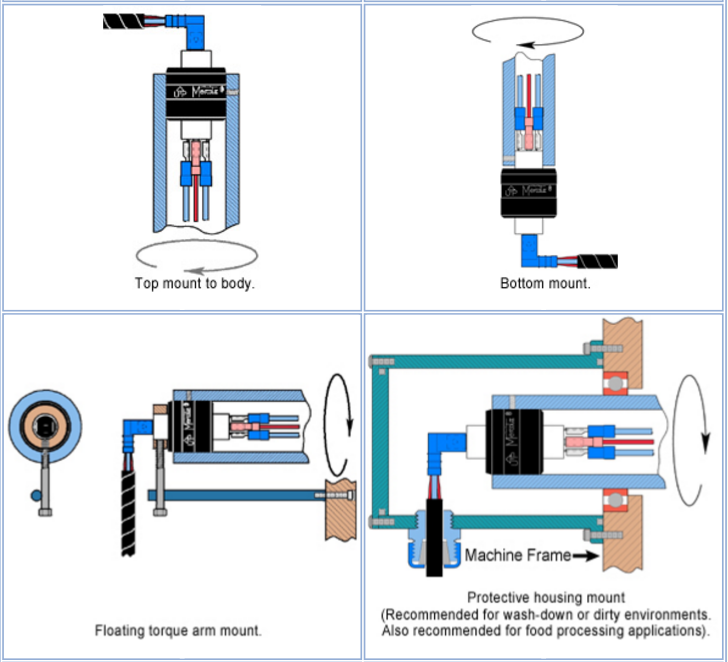

.Installation Notes:

 •the up arrow should not point below horizontal
•do not solder to or bend connector tabs
•avoid lateral forces and mechanical loads (overly stiff or tight wires)
•do not rigid mount both ends of connector
•limit mounting eccentricity (runout / wobble) to .005" (.13mm)
•provide overload protection within the circuit

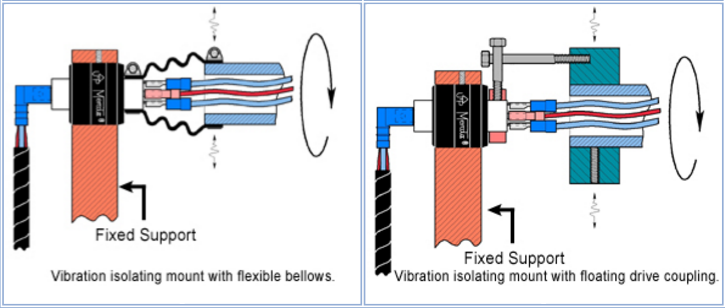

•avoid vibration and bumping motions
