Rotary Electrical Connectors

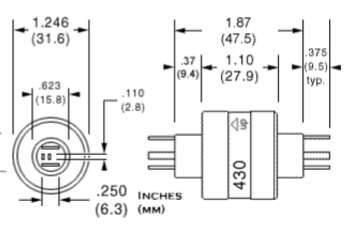

Model 430

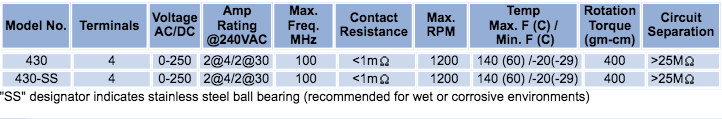

Four Conductors,
2@4amps, 2@30amp

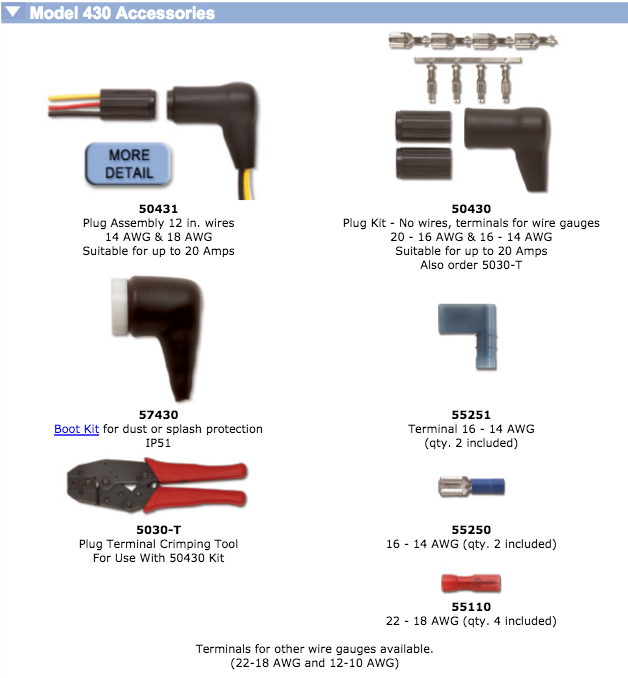

Disconnects included
(4 sm., 4 lg.)

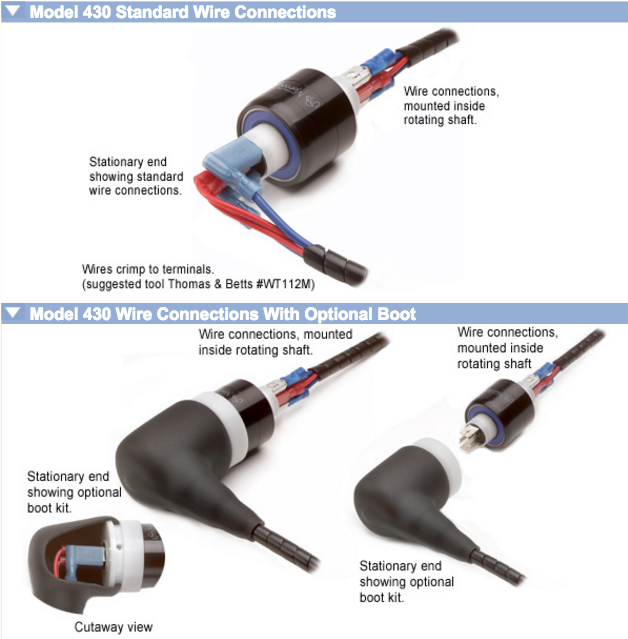

Boot Kit available
Available with stainless steel ball bearing (430-SS)
Mercotac model 430 is ideal for heated roller applications, where connecting to senstive thermocouple signals and simultaneously powering the heater are required.

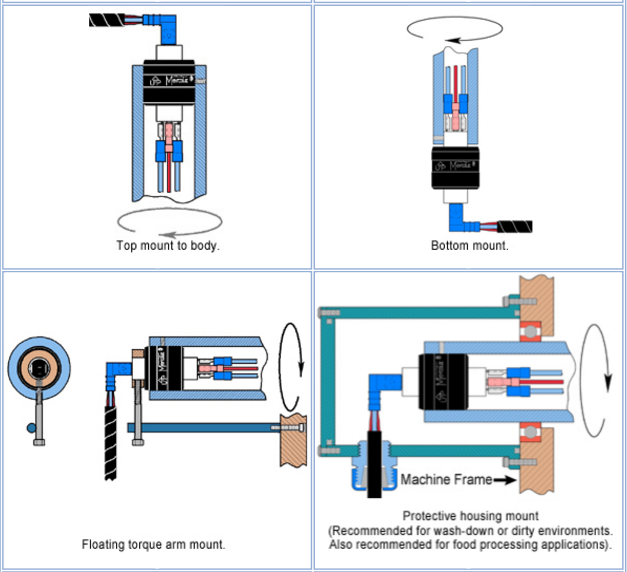

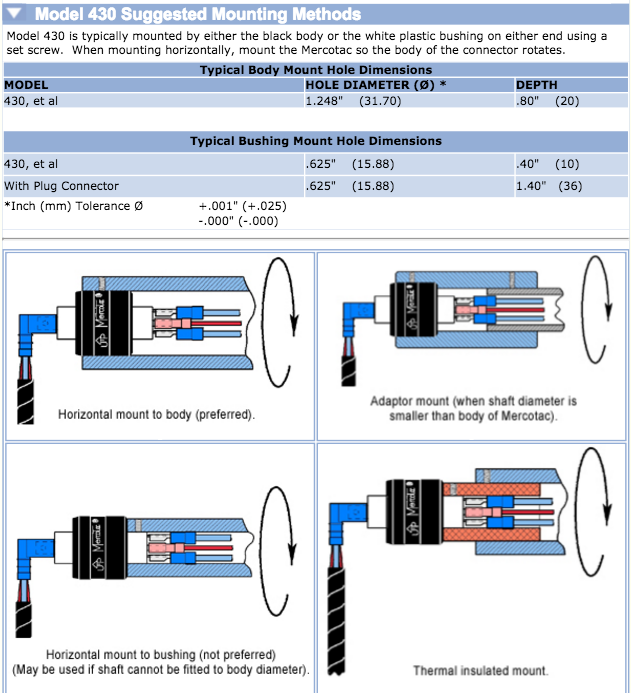

.Installation Notes:

 •the up arrow should not point below horizontal
•do not solder to or bend connector tabs
•avoid lateral forces and mechanical loads (overly stiff or tight wires)
•do not rigid mount both ends of connector
•limit mounting eccentricity (runout / wobble) to .005" (.13mm)
•provide overload protection within the circuit

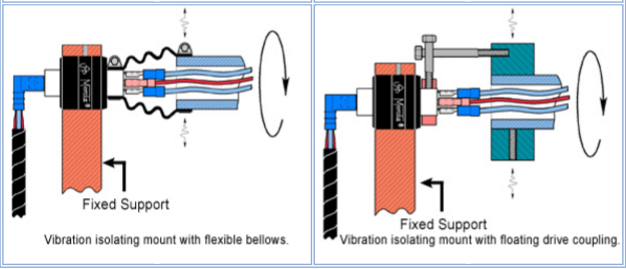

•avoid vibration and bumping motions
