Rotary Electrical Connectors

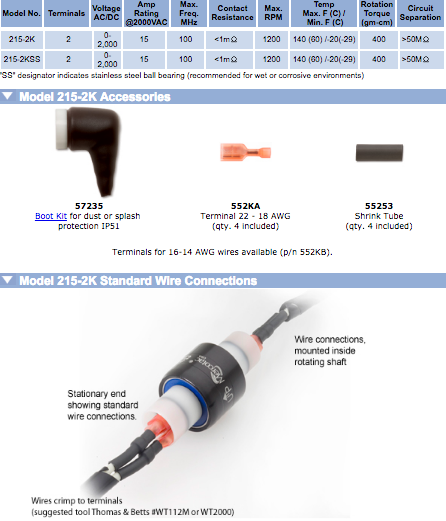

Model 215-2K
Two Conductors, 2@15amps & 2,000V
Disconnects included (4 lg.)

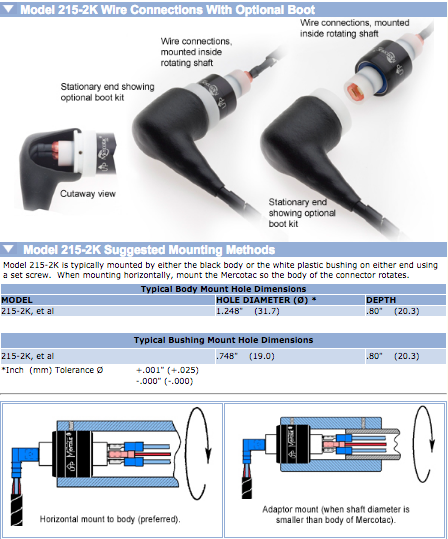

Boot Kit available
Available with stainless steel
  ball bearing (215-2KSS)
Mercotac model 215-2K series is ideal for high-voltage, two-wire applications such as ultrasonic welding.

Installation Notes:
the up arrow should not point below horizontal
do not solder to or bend connector tabs
avoid lateral forces and mechanical loads (overly stiff or tight wires)

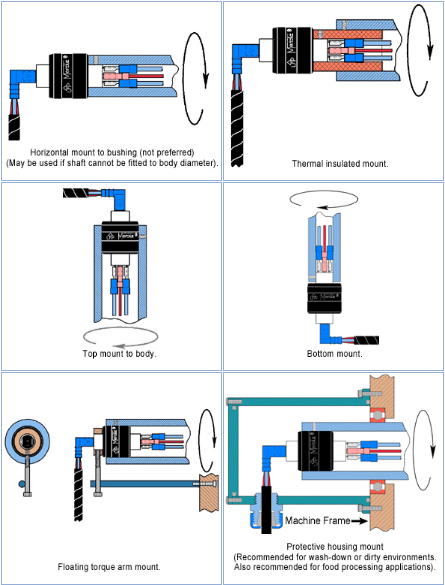

do not rigid mount both ends of connector
limit mounting eccentricity (runout / wobble) to .005" (.13mm)
provide overload protection within the circuit

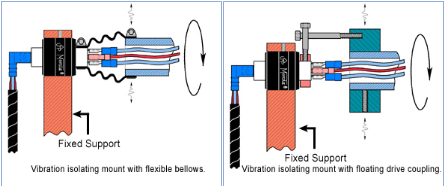

avoid vibration and bumping motions
